[CAS] RWT-M Series

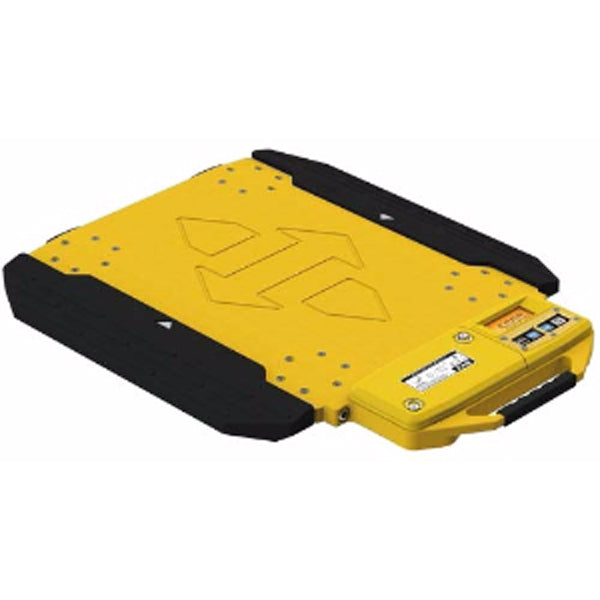

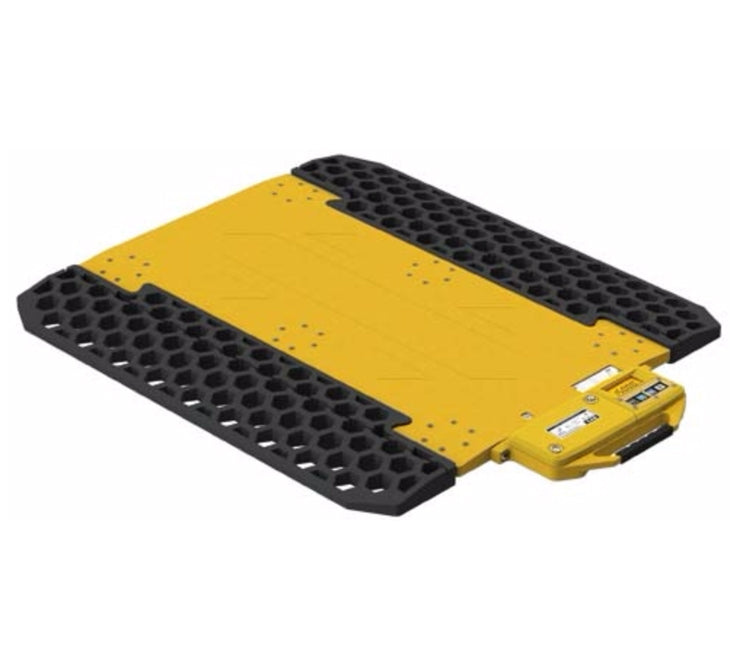

Wheel Weigher Platfrom
RWT-505M
$2,390.00
Choose from four capacities ranging from 10K to 40K lbs, and four different physical sizes. Features wireless ZigBee technology. Configure one master pad to wirelessly access the weights of up to 11 additional pad. Two, four, or six pad kits available.
Subcribe to back in stock notification
| Models | RWT-505M | RWT-705M | RWT-710M | RWT-715M | RWT-910M | RWT-915M | RWT-920M | |
| Capacity & Readability | lb | 10,000 | 10,000 | 20,000 | 30,000 | 20,000 | 30,000 | 40,000 |
| 5 | 5 | 10 | 20 | 10 | 20 | 20 | ||
| kg | 5,000 | 5,000 | 10,000 | 15,000 | 10,000 | 15,000 | 20,000 | |
| 2 | 2 | 5 | 10 | 5 | 10 | 10 | ||
| Resolution | LB: 1/1,500 or 1/2,000(Single Range) | |||||||
| Display type | LCD(Liquid Crystal Display) | |||||||
| Keypad | On/off, Zero, Sum, Backlight | |||||||
| In-Motion Speed | Up to 6 miles per hour / 10 kilometers per hour | |||||||
| Operating Distance | RWT-5000F Wireless Indicator - Approx 40 m / 131 ft | |||||||
| Safe Overload | 150% of rated capacity | |||||||
| Operating temperature (℉/℃) | -4 ~ 140/-20 ~ +60 | |||||||
| Power | 3.7VDC Lithium Polymer Battery | |||||||
| Battery Life | 90Hrs | 60Hrs | 60Hrs | 60Hrs | 70Hrs | 70Hrs | 70Hrs | |
| Dimensions (in/mm) (W x D x H) | 26.5 x 20.9 x 2 674 x 532 x 50 |
34.9 x 28.8 x 2 886 x 730 x 50 |
34.9 x 28.8 x 2 886 x 730 x 50 |
34.9 x 28.8 x 2 886 x 730 x 50 |
42 x 33 x 2 1066 x 840 x 50 |
42 x 33 x 2 1066 x 840 x 50 |
42 x 37 x 2 1066 x 940 x 50 |
|
| Product Weight (lbs/kg) | 33.1/15 | 37.5/17 | 37.5/17 | 44.1/20 | 61.7/28 | 61.7/28 | 88.2/40 | |
| Ship Weight (lbs/kg) | 40/18.1 | 64/29.0 | 64/29.0 | 64/29.0 | 79/35.8 | 80/36.2 | 100/45.3 | |
| Warranty | Two years | |||||||
Dimensions
Brochure & Certificate
Brochure
Software & Manuals
RWT-MOwner's Manual
