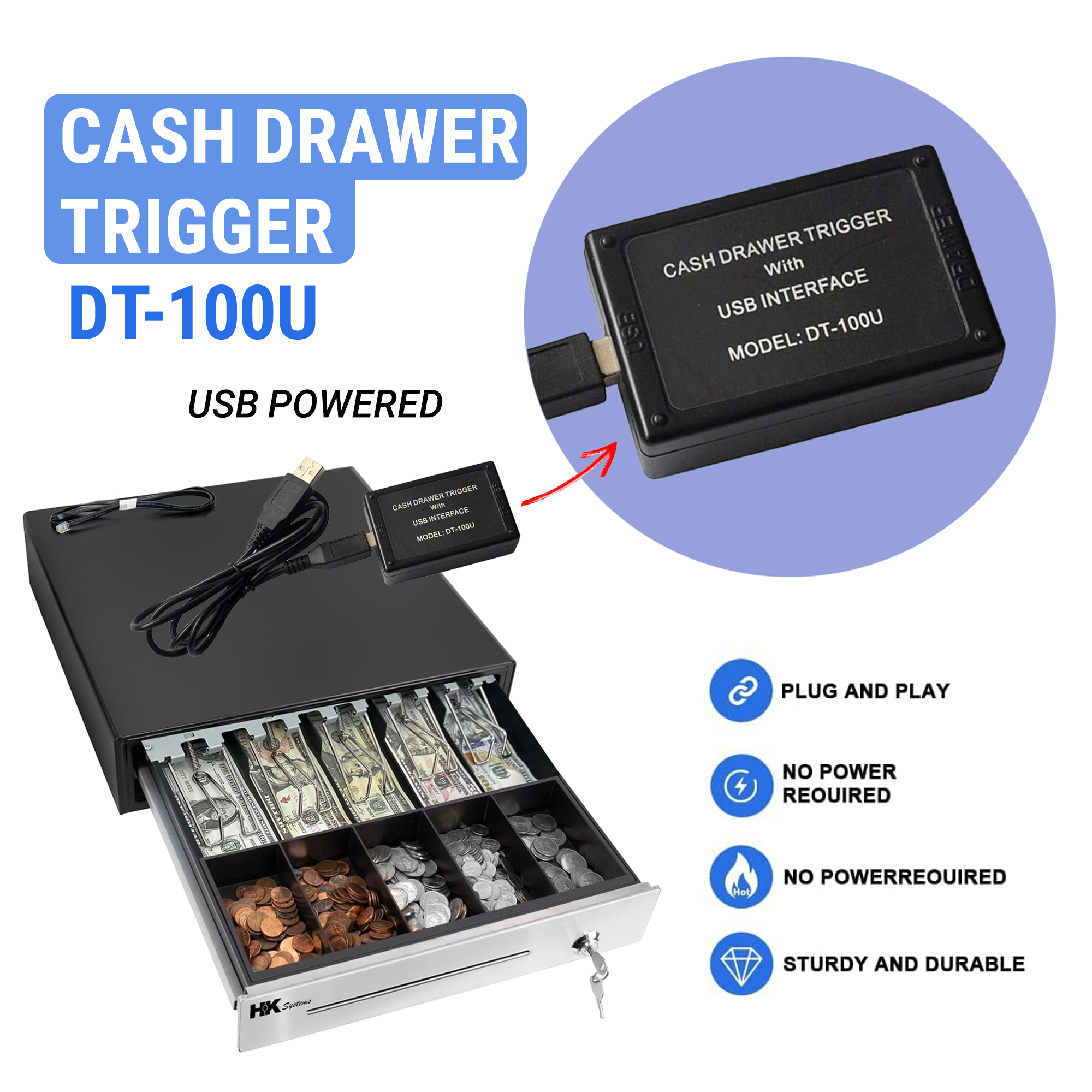

DT-100U cash drawer trigger is designed to provide USB interfacing to the HK cash drawer. This allows the cash drawer, which is previously connected to POS printer or HK cash register, to be directly connected to a USB port of the computer. This means through the USB Trigger the cash drawer can be directly connected to the computer when this no printer used in the POS system. The DT-100U USB trigger module uses a virtual serial port driver, making it appear to software like a standard RS232 serial port. This way existing POS software can communicate with the USB cash drawer trigger as though connected to a serial port.
Does not work with Square! For a Windows PC only! For windows 11, additional steps are required. see manufactures website for details.
For connecting a RJ11/RJ12 Printer- Driven Cash drawer to a windows PC only.
Plug and play(Windows 10 only. For windows 11, additional steps are required. see manufactures website for details.). Creates a serial port (COM1, COM2 etc..), which then pops the drawer with any command to that port.
Enables The Use of A Cash Drawer Without The Need For a Receipt Printer

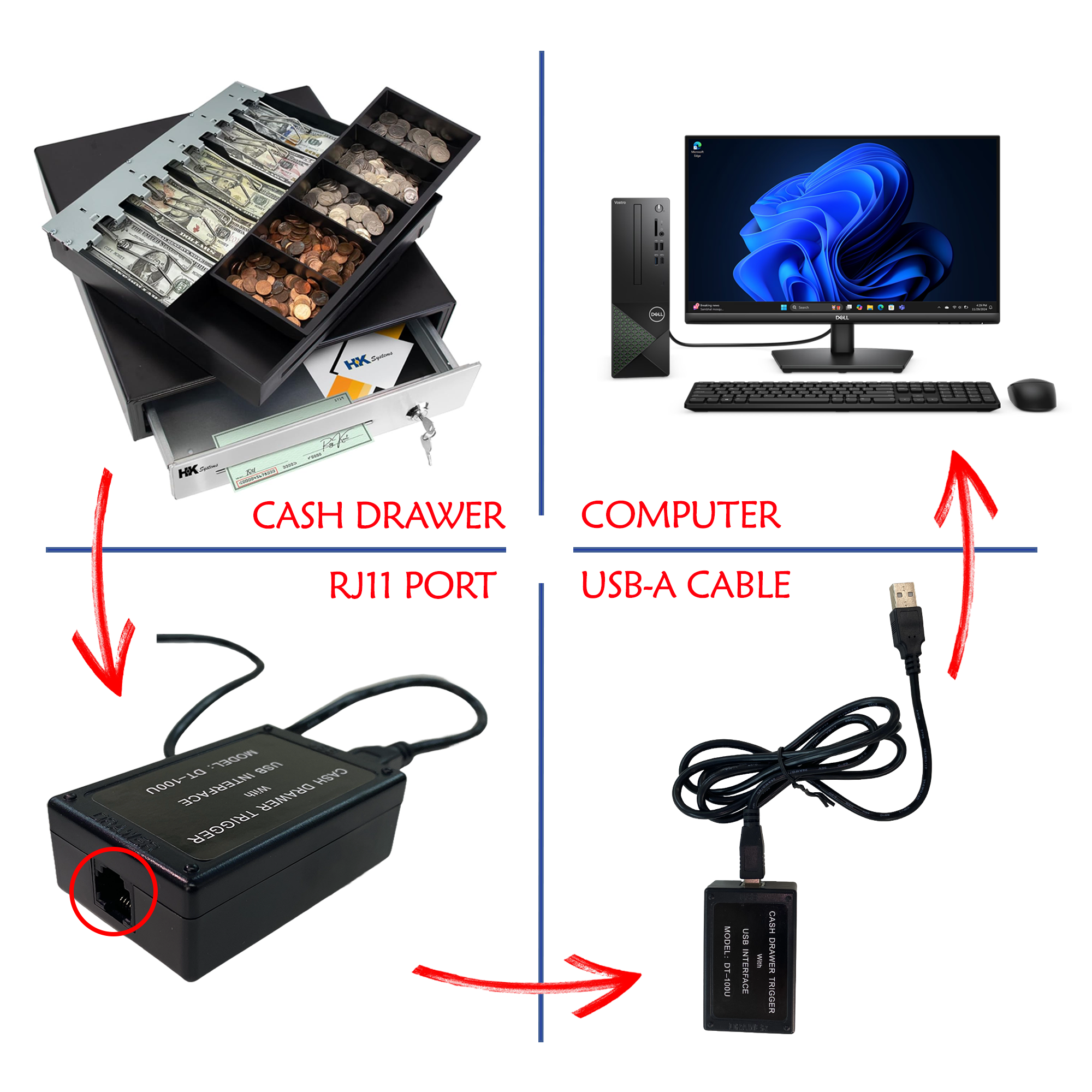

Plug the USB end into your computer, and plug the Cash drawer into the other end.
