[TMT] TXDi-F Series
Wheel Weigher Platfrom, NTEP

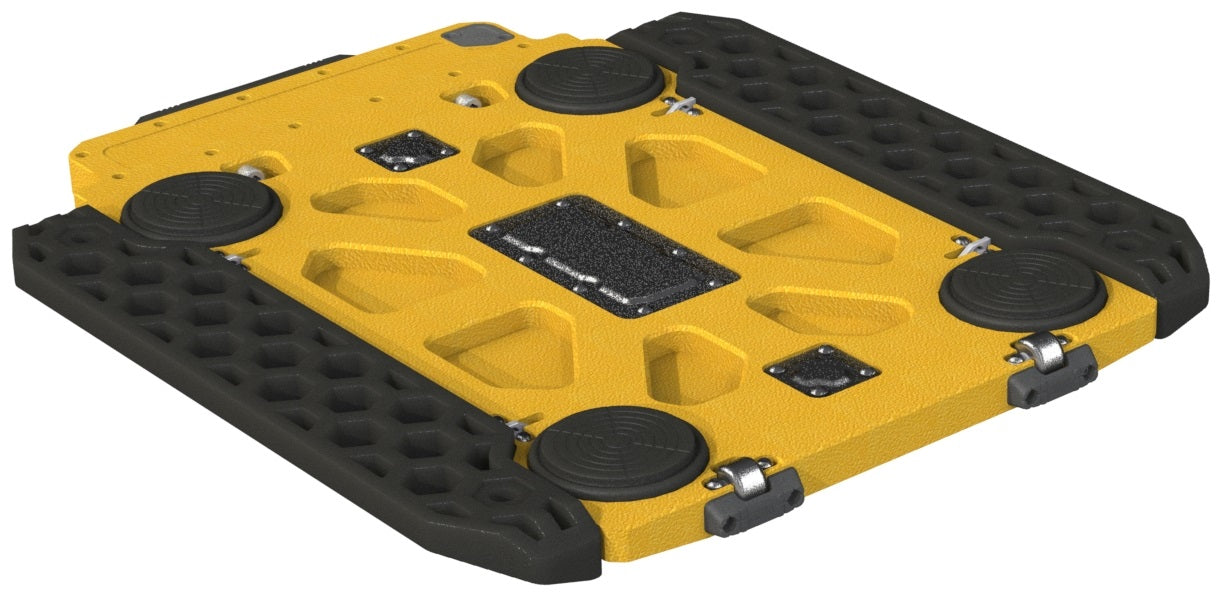

TXDi-505FN
Retail Price:
$2,200.00
Choose from two capacities ranging from 10K to 20K lb, and four different physical sizes. Features wireless ZigBee technology. Connect up to 16 pads using the TXI-500F Wireless Indicator. Two, four, or six pad kits available.
Subcribe to back in stock notification
You may also be interested

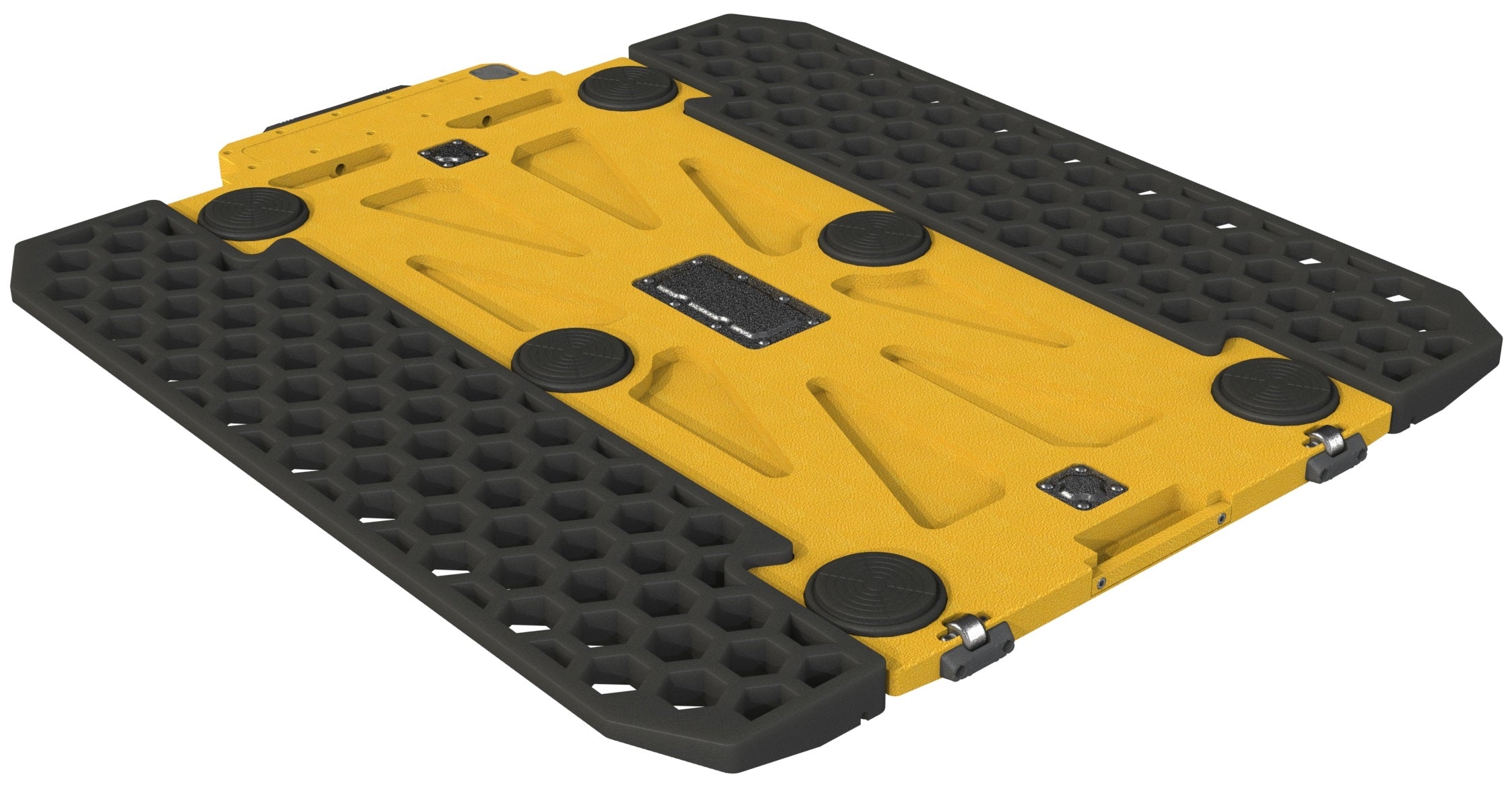

| Models | TXDi-505FN | TXDi-705FN | TXDi-710FN | TXDi-910FN | ||||
| Capacity & Readability | lb | 10,000 | 10,000 | 20,000 | 20,000 | |||
| 50 | 50 | 50 | 50 | |||||
| kg | 4,540 | 4,540 | 9,080 | 9,080 | ||||
| 20 | 20 | 20 | 20 | |||||
| Resolution | 1/200 | 1/200 | 1/400 | 1/400 | ||||
| Display type | LCD(Liquid Crystal Display) | |||||||
| Keypad | On/off, Zero, Sum, Backlight | |||||||
| In-Motion Speed | Up to 6 miles per hour / 10 kilometers per hour | |||||||
| Operating Distance | TXI-500F Wireless Indicator - Approx 40 m / 131 ft | |||||||
| Safe Overload | 150% of rated capacity | |||||||
| Operating temperature (℉/℃) | 14 ~ 104 / -10～ 40 | |||||||

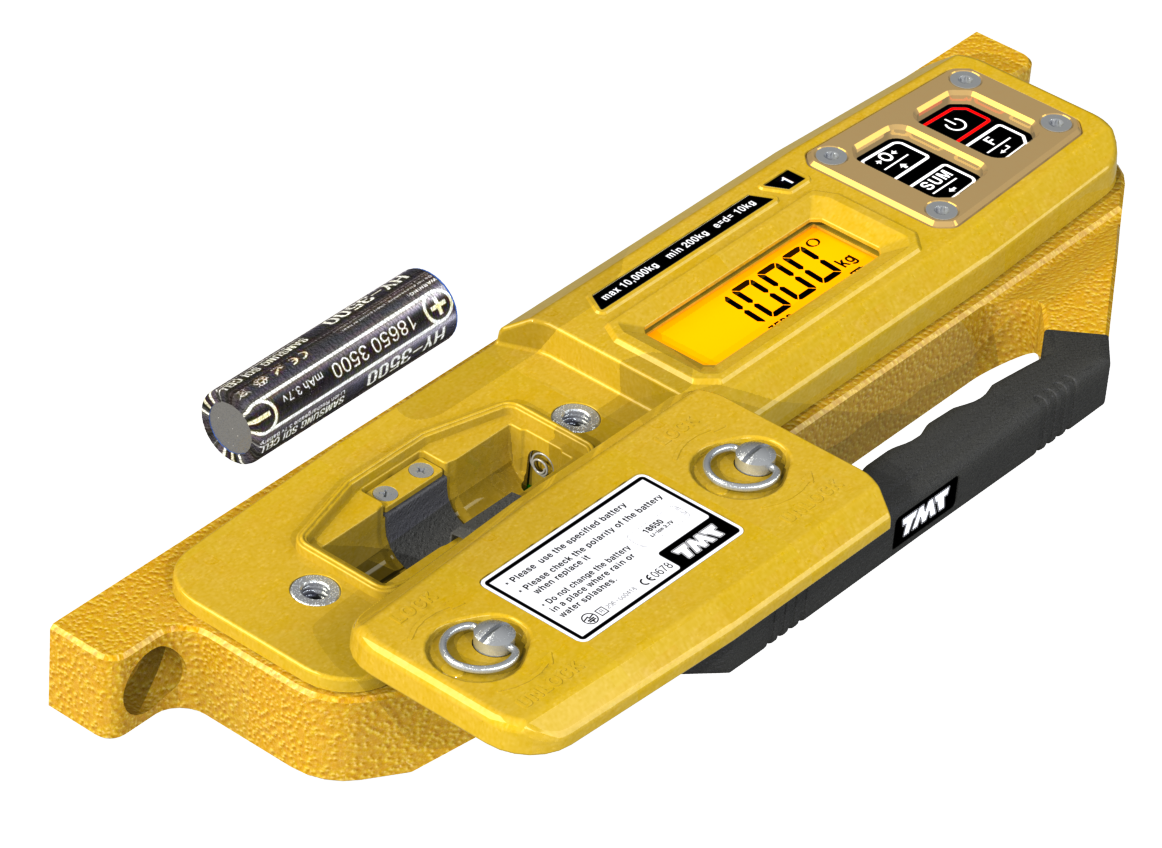

| Power | 3.7V Lithium Ion Battery (18650) | |||||||
| Battery Life | 50Hrs(Max. 120Hrs) | |||||||
| Product Dimensions (in/mm) (W x D x H) | 25.1 x 20.6 x 1.9 637 x 522 x 49 |
33.3 x 28.7 x 1.9 845 x 730 x 49 |
33.3 x 28.7 x 1.9 845 x 730 x 49 |
40.4 x 33.1 x 1.3 1025 x 840 x 34 |
||||
| Platform Dimensions (in/mm) (W x D x H) | 20. 1 x 15.0 x 1.3 510 x 380 x 34 |
27.6 x 19.7 x 1.3 700 x 500 x 34 |
27.6 x 19.7 x 1.3 700 x 500 x 34 |
35.4 x 19.7 x 1.3 900 x 500 x 34 |
||||
| Product Weight (lb/kg) | 34.6/15.7 | 50.3/22.8 | 50.3/22.8 | 60.2/27.3 | ||||
| Ramp Weight (lb/kg) | 0/0 | 3.5/1.6 | 3.5/1.6 | 6.4/2.9 | ||||
| Warranty | Two years | |||||||
